Designing Fault-Tolerant n8n Architectures (at Scale)

You’re running your business automation on a single n8n server. Everything works fine until it doesn’t. One crash, one traffic spike, one complex AI workflow, and suddenly your entire operation grinds to a halt.

This guide walks you through building n8n setups that survive failures, handle massive scale, and keep your automation stack running when everything else falls apart.

Enterprise Ready VPS Platforms for Fault Tolerant n8n Infrastructure

Provider	User Rating	Recommended For
	4.8	Scalability	Visit Kamatera
	4.6	Affordability	Visit Hostinger
	4.7	Developers	Visit IONOS

The Evolution of Your Automation Stack: From Single Server to High Availability

Limitations of a Single Server Setup

Operating n8n on a single server using a basic single-container setup creates processing bottlenecks faster than you’d expect. Long-running workflows block the UI. Incoming webhooks queue up. Users get frustrated.

Here’s the painful truth about single points of failure: one crash means total system downtime. No webhooks processed. No scheduled jobs running. No workflow execution happening at all.

The database constraints hit hard. The default SQLite database locks up at 5,000 to 10,000 daily executions. Maximum concurrent workflows cap at 10-15. Database size limits out around 4-5GB before performance degrades significantly.

For a small team experimenting with workflow automation, these limits might seem distant. They’re not. Growth happens faster than you plan for.

Why System Design Matters for No-Code Workflow Automation

Proper system design transforms n8n from a simple no-code tool into an enterprise-grade automation stack capable of handling mission-critical tasks. This isn’t theoretical. Most organizations discover this the hard way.

Eliminating single points of failure through redundancy ensures that UI, API, and trigger functions remain highly available. Your users keep building workflows. Your integrations keep firing. Your business keeps running.

A well-designed architecture allows for horizontal scaling. The system gracefully handles increased loads without manual intervention. You’re not scrambling at 2 AM because traffic spikes crashed everything.

Core Concepts of Designing Fault-Tolerant n8n Architectures

Decoupling the UI and Execution Engines

The fundamental principle of designing fault-tolerant n8n architectures is decoupling the main instance from the execution workers. Think of it like separating the control room from the factory floor.

The main instance handles the user interface, API requests, and workflow triggers. Nothing else. It stays responsive because it’s not doing the heavy lifting.

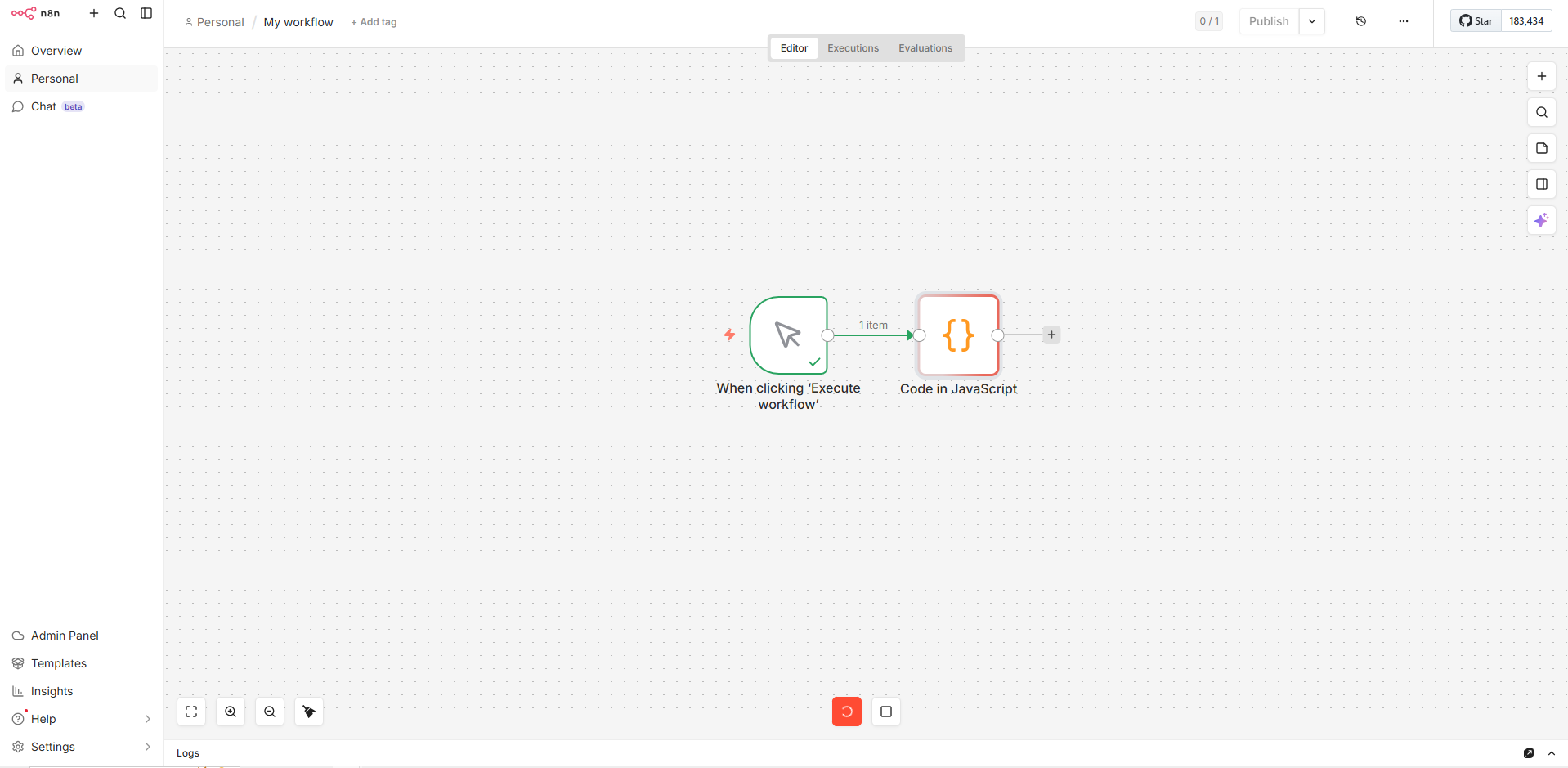

Executions get offloaded to dedicated worker nodes. The main instance remains snappy even during heavy computation. Users can edit workflows while massive data pipelines run in the background.

Managing Traffic Spikes with Queue Mode

Queue mode is the primary mechanism for achieving massive scalability and surviving sudden traffic spikes. Without it, scaling n8n meaningfully becomes nearly impossible.

Enabling queue mode requires setting the environment variable EXECUTIONS_MODE=queue on both the main instance and all worker nodes. This single change unlocks horizontal scaling.

Here’s how queue mode works in practice:

1. The main instance receives a trigger and generates an execution ID
2. The task gets pushed to a message broker (Redis)
3. Worker nodes pull the job from Redis and fetch the workflow from the database
4. Workers execute the job, write results to the database, and notify Redis
5. The main instance receives the update

This separation means one process never handles everything. Reliability improves dramatically.

3 Tiers of n8n Architecture Scaling

Understanding your options helps you pick the right infrastructure for your needs. VPS pricing varies significantly across providers, so matching your tier to actual workload matters.

1. Beginner Tier: The SQLite Baseline

Designed for simple, low-volume use cases with a single instance. Perfect for initial setup and testing before real-world deployments demand more.

This tier handles 5,000 to 10,000 daily executions with 5 to 15 concurrent workflows. It’s a cost-effective starting point, typically ranging from $6 to $24 per month.

The catch? It lacks fault tolerance. One failure takes down everything. For experimental evaluation and learning, that’s acceptable. For production environments, it’s not.

2. Advanced Tier: Introducing Postgres

Replacing SQLite with PostgreSQL handles higher concurrency and enables team editing. Multiple users can work simultaneously without database locks.

This tier supports 10,000 to 100,000+ daily executions and 15 to 50 concurrent workflows. Performance jumps 5x to 10x compared to SQLite.

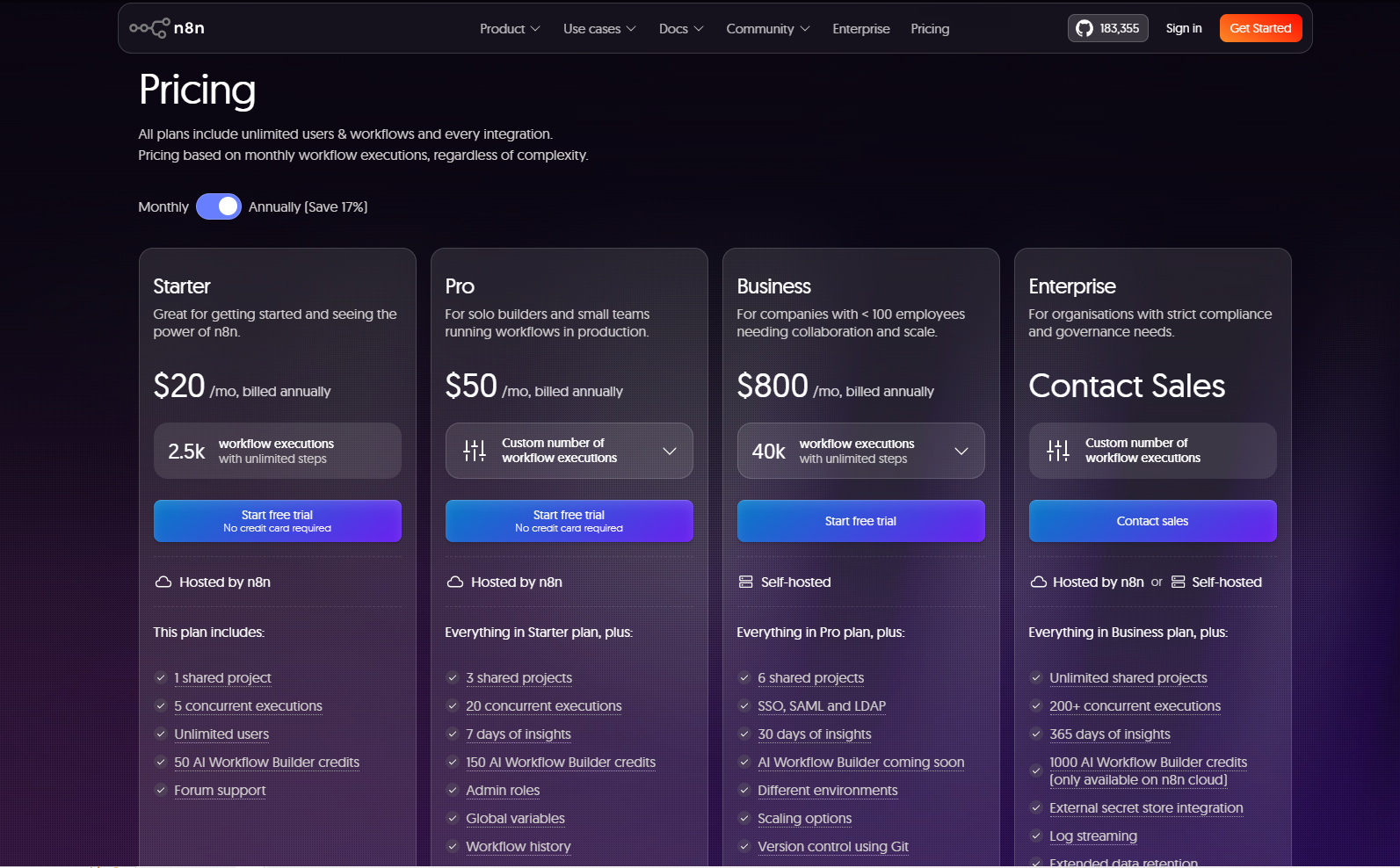

Estimated infrastructure costs range from $30 to $60 per month. You can check current cloud pricing at n8n.io/pricing.

PostgreSQL unlocks the ability to execute workflows in parallel. Your data stays consistent. Your team stays productive.

3. Scale Tier: The Highly Available Cluster

This tier utilizes queue mode, Redis, Postgres, and multiple workers for true high availability. It’s what serious workflow orchestration looks like.

Easily processes 100,000 to 400,000+ monthly executions with 50+ concurrent workflows. Infrastructure costs start at $30+ per month, depending on the hosting provider and node count.

The benefits compound: robust requeuing, multi-worker processing, and leader election. When deciding between VPS and dedicated server options, consider your expected scale and whether vertical scaling alone will suffice.

Ultahost

Launch, Scale, and Manage your website with high-performance Web Hosting and VPS.

Visit Site Coupons6

Deep Dive into Queue Mode and Worker Nodes

Configuring Workers for Optimal Concurrency

Workers are specialized n8n instances running in main mode, started via the CLI command ./packages/cli/bin/n8n worker. They’re the muscle behind your intelligent automation setup.

The default worker concurrency is set to 10 jobs. However, configuring concurrency to 5+ (using –concurrency=5) prevents database connection pool exhaustion. More workers doesn’t always mean better performance.

Worker performance and health monitoring appears in the n8n UI under Settings > Workers. This visibility matters for a DevOps engineer managing operational workflows across multiple nodes.

Handling Heavy Workloads: AI Agents and Retrieval-Augmented Generation

Complex workflows powering AI agents or performing retrieval-augmented generation require significant compute time and memory. These tasks don’t play nice with simple setups.

Queue mode ensures these heavy, long-running executions don’t crash the main UI or block other lightweight tasks. Your AI assistants keep working while users keep building.

Worker nodes scale horizontally to provide dedicated processing power for intensive data processing. Generative AI workflows benefit enormously from this separation. Larger datasets process without choking everything else.

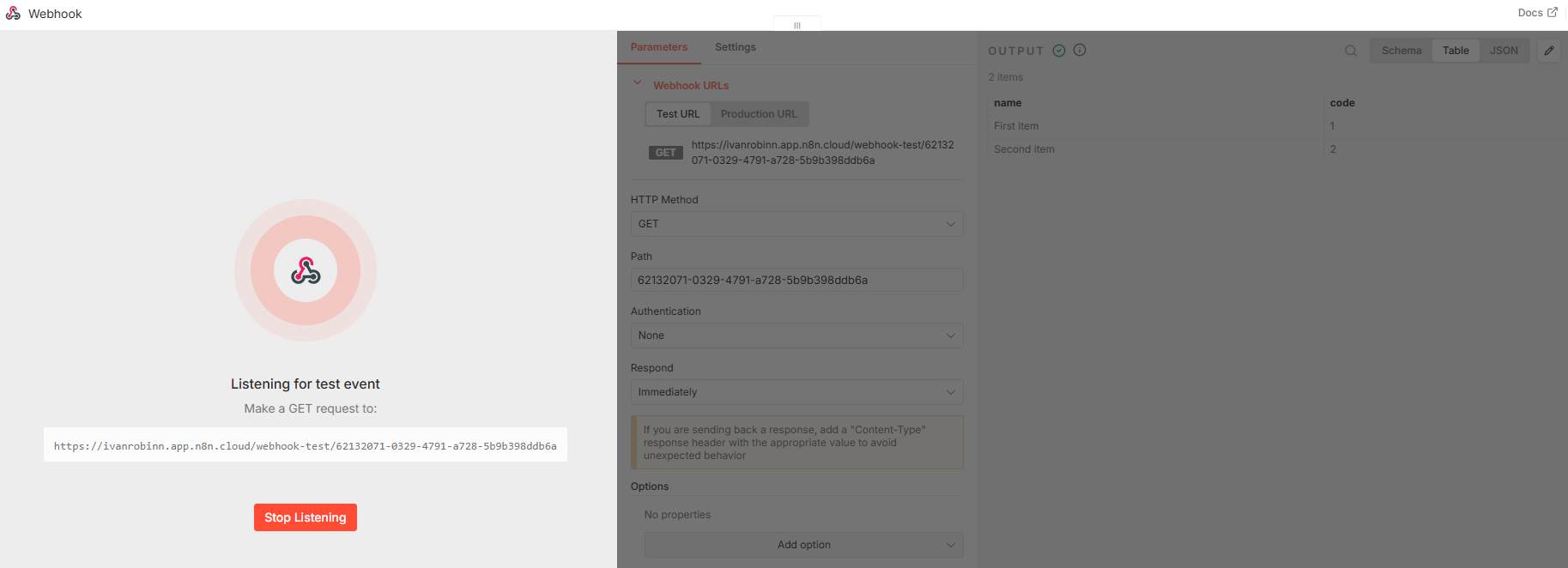

Webhook Processors for High-Volume Inbound Traffic

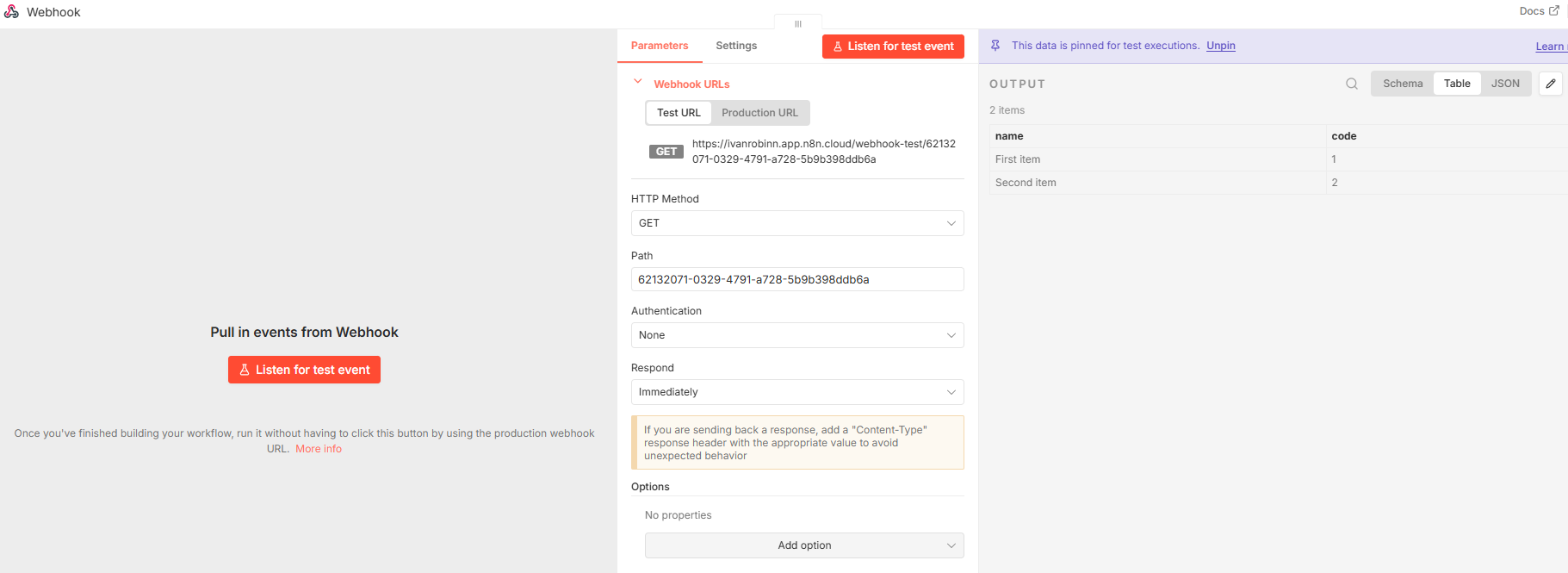

For architectures receiving massive inbound requests, dedicated webhook processors act as an optional scaling layer. They’re specialized components handling one job extremely well.

Started via ./packages/cli/bin/n8n webhook, these processors listen on port 5678 and require Redis and queue mode to function properly.

To optimize performance, disable production webhooks on the main process using N8N_DISABLE_PRODUCTION_MAIN_PROCESS=true. This separation prevents webhook floods from degrading UI performance.

Database and Message Broker Resilience

Redis: The Backbone of Multi-Agent Task Distribution

Redis acts as the central message broker, distributing tasks across a multi-agent setup of worker nodes. Without it, queue mode can’t function.

The default configuration runs on port 6379 on database 0 (QUEUE_BULL_REDIS_DB=0). The default Redis timeout threshold is configured to 10000ms via QUEUE_BULL_REDIS_TIMEOUT_THRESHOLD.

For high availability, configure Redis with Sentinel (for failover) or Cluster (for sharding). Enable AOF/RDB persistence. Your execution history depends on Redis staying healthy.

Moving from SQLite to PostgreSQL

Official n8n technical documentation strongly emphasizes using PostgreSQL (version 13 or higher) for production environments instead of SQLite. This isn’t a suggestion.

PostgreSQL prevents database locking issues inherent to SQLite. Multiple workers read and write simultaneously without stepping on each other. Parallel execution becomes possible.

This migration is essential for unlocking the full concurrency potential of queue mode. Your stored credentials, workflow definitions, and execution data need a database built for concurrency.

Implementing High Availability for Datastores

Datastore resilience is critical. If the database goes down, your entire automation stack halts. Every workflow. Every webhook. Every scheduled task.

Postgres HA strategies include:

• Primary-replica streaming replication
• Patroni for automated failover
• Point-in-Time Recovery (PITR) backups
• PgBouncer or Pgpool-II for connection pooling

Always place databases on private networks. Never expose them publicly. This basic security step prevents countless problems.

Advanced System Design: Multi-Main and Leader Election

How Leader Election Prevents Duplicate Executions

In a multi-main setup, multiple main instances run simultaneously for high availability. But someone needs to be in charge of certain tasks.

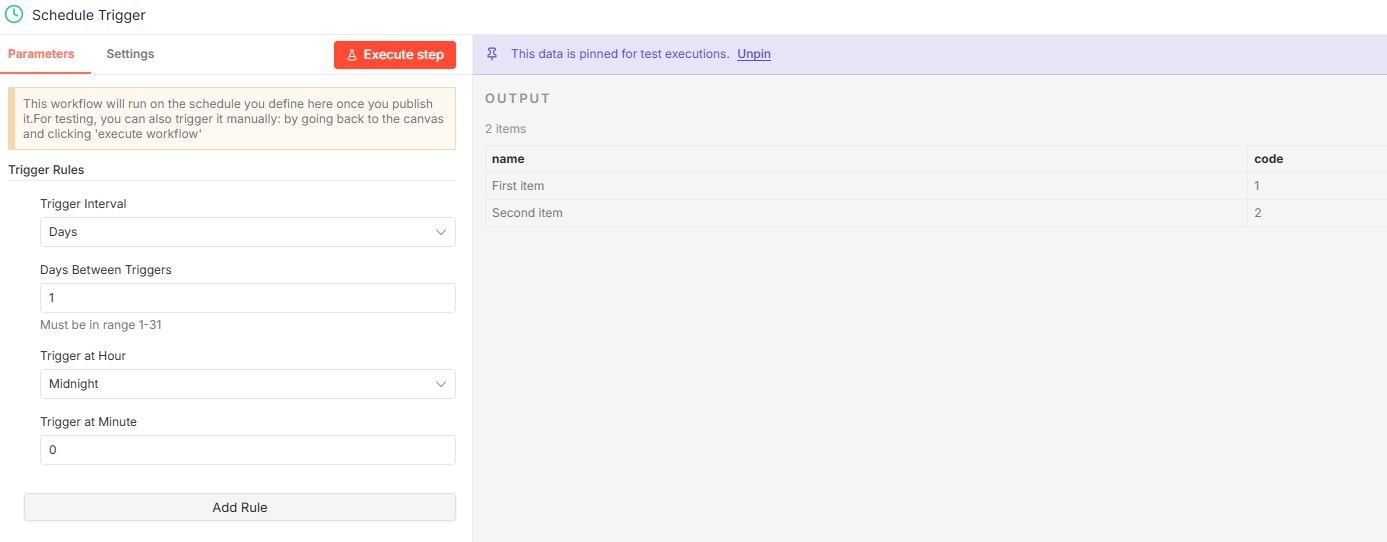

Leader election is transparent. One instance becomes the “leader” to handle at-most-once tasks like timers, pollers, and pruning. Cron jobs execute exactly once, not three times.

If the leader crashes or experiences a busy event loop, follower nodes automatically take over. Configure using N8N_MULTI_MAIN_SETUP_KEY_TTL=10 (10-second TTL) and N8N_MULTI_MAIN_SETUP_CHECK_INTERVAL=3 (3-second intervals).

Configuring Follower Nodes for API and UI Load

Follower nodes in a multi-main setup handle regular tasks. API requests, user interface hosting, and webhooks all distribute across multiple instances.

Enable this by setting N8N_MULTI_MAIN_SETUP_ENABLED=true on all main instances. Every node participates in sharing the load.

Requirements matter here. All instances must run the exact same n8n version. Place them behind a load balancer with sticky sessions enabled. Users get a seamless experience even with multiple backend nodes.

Choosing the Right Infrastructure for Your n8n Deployment

When scaling your n8n architecture, infrastructure selection directly impacts performance and reliability.

A properly configured VPS provides the isolation, control, and scalability that n8n deployments require. You get dedicated resources without dedicated server costs. Support for containerization, custom environment variables, and network configuration makes VPS hosting ideal for modular architecture deployments.

For real-world projects involving AI, data ingestion, and complex integration patterns, VPS infrastructure delivers the flexibility most organizations need. Start with a smaller instance, add more workers as demand grows, and scale your database tier independently.

Build Your App Now with Hostinger Horizons

Turn your idea into a powerful app in minutes with Hostinger Horizons. No coding, no hassle, just AI-powered building that brings your vision to life.

Visit Hostinger

Load Balancing, Networking, and Security

Intelligent Routing for Webhooks and UI Traffic

A load balancer (like HAProxy, Nginx, or a cloud provider LB) is essential for routing traffic correctly. Without it, you’re guessing where requests land.

Requests to /webhook/* and /webhook-waiting/* must route to the dedicated webhook processor pool. All other paths should route to the main instance pool.

The environment variable WEBHOOK_URL must be set to your public-facing domain. This ensures webhooks work correctly regardless of which node actually processes them.

Private Networking and Securing Your Automation Stack

Security is paramount. Datastores (Postgres and Redis) must utilize private networking. Public database access is asking for trouble.

Managed platforms often default to private networks, using configurations like ipAllowList: [] to block external database access. Verify this setting exists.

Implement failover DNS services (such as Cloudflare or Route53) to route traffic away from downed data centers. Operational efficiency demands reducing errors from preventable outages.

Managing Persistence and Encryption Keys

Queue mode doesn’t support binary data stored in the local filesystem. External storage like AWS S3 must be used for production deployments.

Alternatively, use a shared disk mount at /home/node/.n8n/binaryData. This works but requires additional infrastructure planning.

The N8N_ENCRYPTION_KEY environment variable must be shared identically across the main instance and all workers. Without this, workers can’t decrypt stored credentials. Workflows fail mysteriously. Save yourself the debugging headache.

Performance Benchmarks and Monitoring

Single Instance vs. Multi-Instance Benchmarks

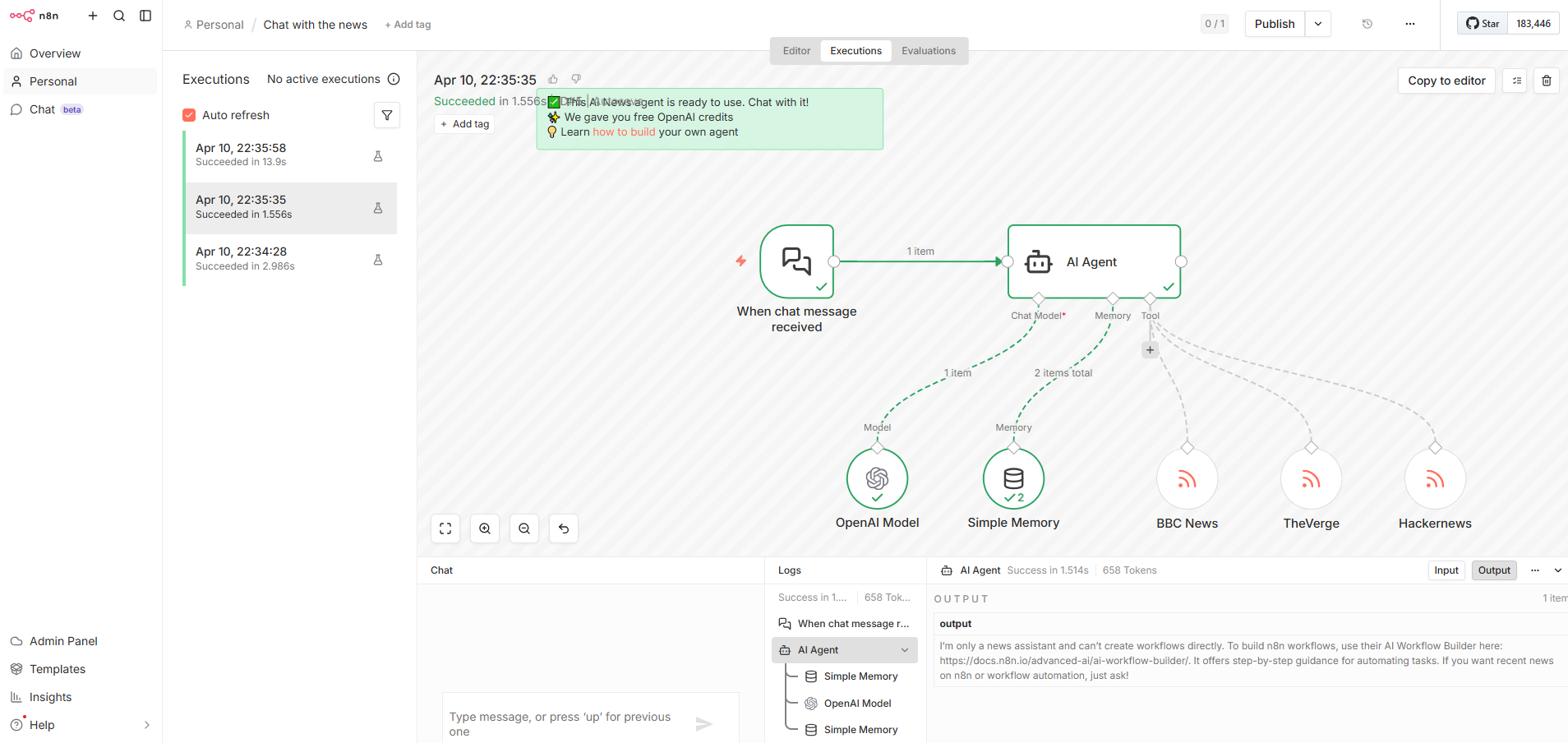

A single n8n instance (using an ECS c5a.large with 4GB RAM and Postgres) processes up to 220 workflow executions per second. Those experimental results surprised many users.

Under peak load, P99 response time remains within 100 seconds up to high RPS. Push past limits and performance degrades rapidly.

Multi-instance scaling (7x ECS c5a.4xlarge with 2 webhooks, 4 workers, 1 main) drastically increases throughput. Test your own setups using n8n’s official benchmarking framework.

Implementing Health Checks and Graceful Shutdowns

Workers expose health check endpoints at /healthz and /healthz/readiness (enabled via QUEUE_HEALTH_CHECK_ACTIVE=true). These endpoints enable container orchestrators to make smart scaling decisions.

Uptime monitoring tools like Uptime Kuma, alongside Prometheus and Grafana, track queues, latency, and replication lag. This context proves valuable when debugging production issues.

Key shutdown configurations include:

• N8N_GRACEFUL_SHUTDOWN_TIMEOUT=30 gives workers 30 seconds to finish jobs
• EXECUTIONS_TIMEOUT=300 ensures jobs don’t hang longer than 5 minutes during scale-down

Version control your configuration. Future you will thank present you for documenting these settings.

Comparison Table: n8n Architecture Tiers for Fault Tolerance at Scale

Cheap VPS

best option

Compare Now

Conclusion

Building scalable n8n systems requires understanding the tradeoffs between simplicity and resilience. Start with SQLite for learning, graduate to PostgreSQL for production, and implement queue mode when scale demands it.

The practical steps outlined here transform n8n from a simple automation tool into enterprise-grade infrastructure. Your workflows deserve architecture that matches their importance.

Next Steps: What Now?

1. Assess your current execution volume and identify your architecture tier.
2. Migrate from SQLite to PostgreSQL if exceeding 5,000 daily executions.
3. Enable queue mode and deploy your first worker node.
4. Configure Redis with persistence and health monitoring.
5. Implement graceful shutdown settings before your next deployment.
6. Test failover scenarios in staging before relying on them in production.
